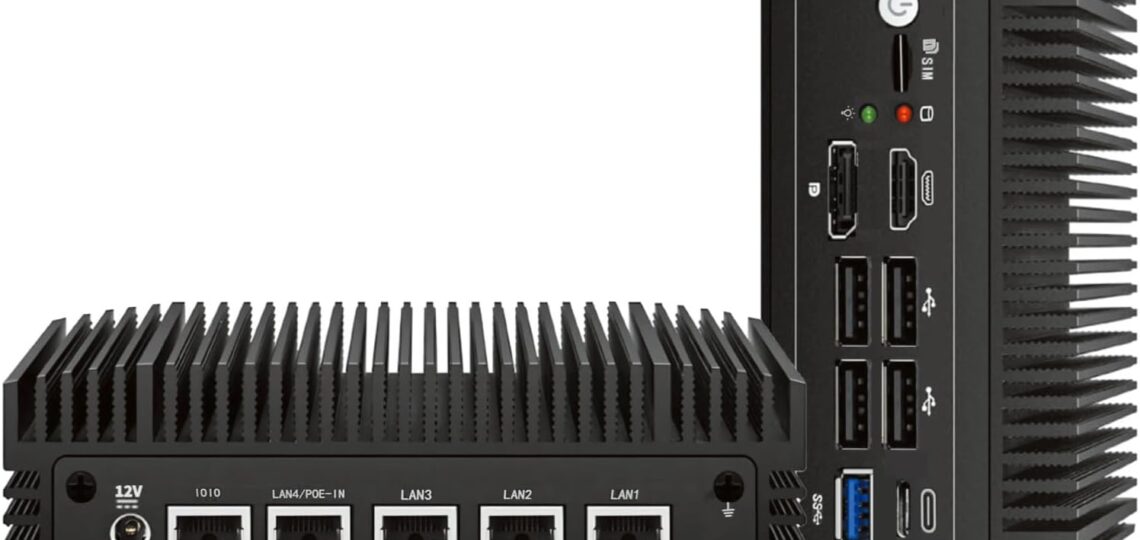

Fanless N100 Mini PC Micro Firewall Appliance, 4 * 2.5Gbe i225 LAN Ports Power Over Ethernet Mini Computer 16GB DDR4 RAM 512GB SATA SSD, USB-C/5*USB/SIM Slot/HD+DP/Home Network Pfsense Router

Price: $299.00 - $249.00
(as of Jun 01, 2025 17:35:31 UTC – Details)

Product Description

Fanless Industrial N100 Mini PC Micro Firewall Appliance 16+512GB

Dual Display HDMI + DP support 4K@60Hz m.2 B Key for 4G LTE/5G with Nano SlM Slot Onboard

POE IN MINI PC BIOS SETTINGS

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. POE IN MINI PC BIOS SETTINGS Merchant Video

How to hand up the mini pc?

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. How to hand up the poe mini pc? Merchant Video

Processor CPU 12th Intel Alder Lake N100 Processor, TDP 6W, Quad core, 4 threads, up to 3.4GHz, 6M Smart Cache GPU Intel UHD Graphics Memory(RAM) Installed 16GB DDR4 RAM SODIMM 3200 Slots Max 32GB Storage Installed 512GB M.2 2280 SATA SSD, expand up to 2TB WiFi Support WiFi ac/ax (NOT preinstalled WiFi module) Support 3G/4G/5G (Not include 3G/4G/5G module/SIM) Support AES-NI/OPNsence/VPN/POE IN (48-52W)/Firewall Micro Appliance Support Powered by 802.3at PoE,(PoE+30W),802.3bt(PoE++ 60W) Network 4 x 2.5Gbe LAN port (Intel I225-V chipset,1 port can support POE IN) OS Pre-installed Win 11 Pro, support Wins 11\Wins 10\ Linux (Ubuntu\Centos\Pf-sense\opnsense) I/O HDMI 2.0,DP 1.4, USB2.0 x 4, USB3.0 x 1, USB3.0 Type-C x1

Memory upgrade hardware compatibility list?

DDR4 3200MHz Slots Max 32GB

Can this POE IN mini pc support the device 802.3 af or 802.3at?

No, the device can be powered by 802.3bt(PoE++,60W) and 802.3at(PoE+,30W), but can not powered by 802.3 af(PoE,15W).

Does AC8F POEIN support Power over Ethernet forwarding?

No.

Customer customization available?

We support OEM service and main business is TO B OEM business, our product with lobal brand sold to many EU countries.

The customization package/manual, boot logo/brand/model, OS info, logo print on device…and so on.

{Intel N100 Powerful Processor & OS Win11PRO} This industrial mini pc come with Intel N100 Processor Quad core 4 threads 6M Cache at 0.8GHz (upto 3.4GHz),FANLESS DESIAN for 6 Watt CPU while minimizing noise and dust ingress; This Small PC Supports POE IN, AES NI, PFsense, VPN hardware and so on; The Micro PC installed with Wins11Pro, supports WIN10/ubuntu and other popular open source firewall router software; Support Auto Power On, Wake on LAN, RTC Wake and PXE boot[“DEL” key to enter BIOS].
{PoE Technology & 4x Intel 2.5Gbe Ports} This 4 network ports mini computer comes with Intel i225 chip, supports 4x 2.5 Gigabit Ethernet to keep stable and high speed, 1 port also featuring POE IN PD Function, the device’s power can supplied by the POE LAN with a power of 36W; You can connect computers, network devices and routers together for Internet access and resource sharing; Our 4 lan mini computer can be used as micro firewall appliance, network pfsense router, computer servers…
{16GB DDR4 + 512GB SATA SSD} This mini desktop computer installed 16GB DDR4 2666 3200MHz RAM and 512GB M.2 2280 SATA SSD; The memory is only 1 sodimm slot, The single sodimm that can expand storage upto 32GB[Depends on memory type]; It also supports M.2 2280 SATA SSD up to 2TB[Not support NVME SSD]; Large storage makes Mini PC run more smoothly and can meet the vpn router box requirements of different network security firewall software and hypervisor applications.
{m.2 B Key for 4G LTE/5G with Nano SIM Slot Onboard} This mini pc is equipped with a SIM Card slot[Support but not include 4/5G module], you can push a NANO SIM card[Not included] for 4G LTE/5G to connect the internet; Mini PC with Dual display located in the front I/O panel including dual HD 2.1 (Up to 4K@60Hz) and DP 1.4; Support Wifi ac ax[NOT preinstalled wifi module];1 x RJ45 COM RS232, Can realize computer communication, industrial automation, security control, etc.
Package List: MINI PC, AC Power Adapter, HD Cable, Antenna x 2, VESA Mount, User Manual, Screws; NOTICE: The device can be powered by 802.3bt PoE++ 60W & 802.3at PoE+ 30W, but can not powered by 802.3 af PoE 15W.
IMPORTANT: This mini pc has been installed with Win11PRO system. If you need to use it or other firewall systems as a firewall/soft router, you need to reinstall the system, we recommend that you operate under the guidance of professionals; if you have any problems, please contact us.
