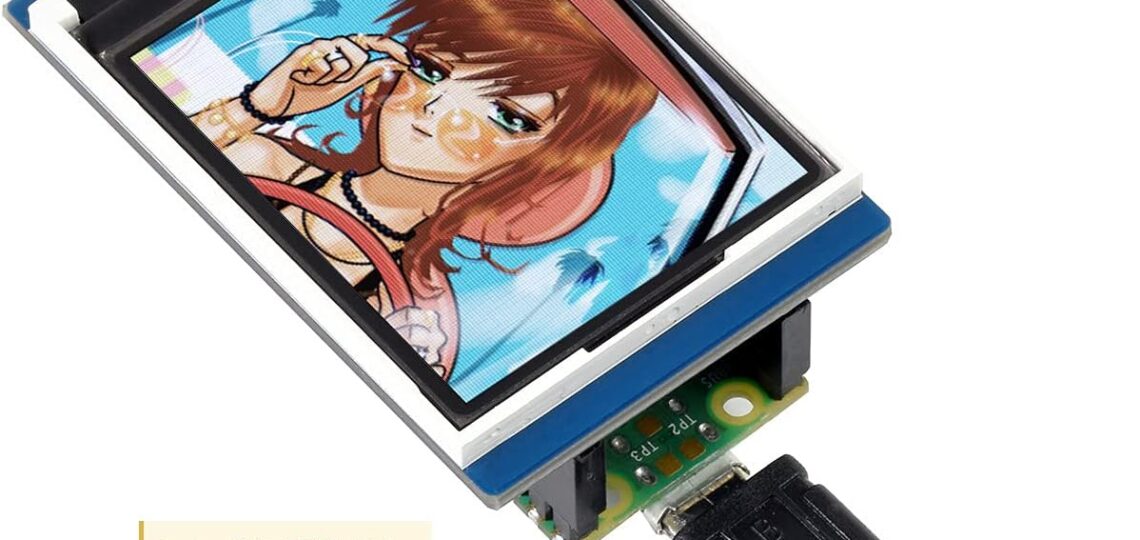

waveshare 1.8inch LCD Display Module for Raspberry Pi Pico Microcontroller Board,160×128 Resolution 65K RGB Colors Display TFT Screen,SPI Interface

3. June 2025 By Pietwien Off

Price: $13.49
(as of Jun 04, 2025 01:05:02 UTC – Details)

Features
1.1.8″ LCD Display Module For Pico
Embedded ST7735S Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo2.Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Specifications
OPERATING VOLTAGE:2.6 ~ 5.5V
COMMUNICATION INTERFACE:4-wire SPI
DISPLAY PANEL:TFT
DRIVER:ST7735S
RESOLUTION:160×128 pixels
DISPLAY SIZE:35.04 × 28.03 mm
PIXEL SIZE:0.219 × 0.219 mm
DIMENSIONS:52.0 × 34.5 mm

Package Content
Pico-LCD-1.8 x1

Note
Development Resources is provided , please contact us if you have any problem .
160×128 resolution, 65K RGB colors, clear and colorful displaying effect
SPI interface, requires minimal IO pins
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
